Brand Name : | SINOMTP |
Model Number : | HZS40E |
Certification : | ISO/CE/BV/CCC |
Price : | Negotiation |
Supply Ability : | 50 units per month |
Delivery Time : | 35 days before payment |

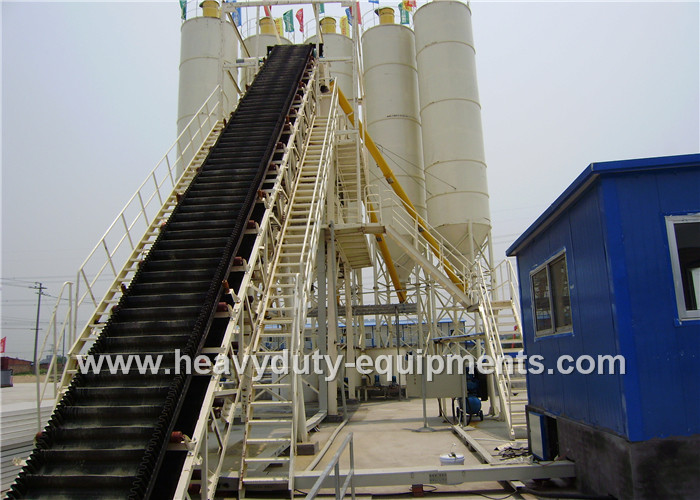

Shantui HZS40E of Concrete Mixing Plants having the theoretical productivity in 40m3 / h
Model | HZS40E | |
Productivity(m3/h) | 40 | |
Main mixing unit | Model | JS750 |
Mixing power(kW) | 30 | |
Discharge capacity(m3) | 0.75 | |
Maximum aggregate size (gravel/pebble mm) | ≤60/80 | |
Material bin | Bin capacity(m3) | 4 |
Winch motor power(kW) | 7.5 | |
Metering | Aggregate(kg) | 1500±2% |
Cement(kg) | 500±1% | |
Coal ash(kg) | / | |
Water(kg) | 200±1% | |
Additive(kg) | 20±1% | |
Discharge height(m) | 3.8 |
Application:
It’s applicable for the engineering constructions of roads, high-speed railways, ports, airports, and hydropower projects
Technical Features:
The feeding mode by lifting hopper and the modular design are adopted, featuring simple structure, easy installation and transfer, and small occupation area.
![]() |
