Brand Name : | SINOMTP |
Model Number : | SINOMTP-FY50 |
Certification : | ISO/CCC/BV/CE |
Price : | Negotiation |
Supply Ability : | 500 units per month |
Delivery Time : | 25 working days after received payment |

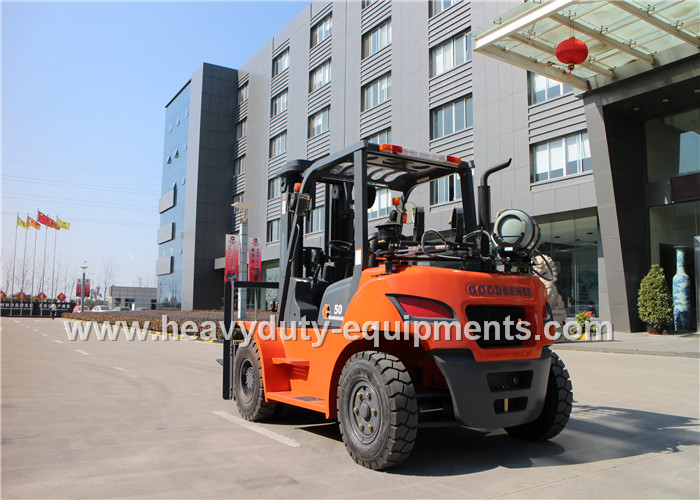

Sinomtp FY50 Gasoline / LPG forklift with 2550mm Mast Lowered Height
Specification:
General | 1 | Model | Unit | FY50 | ||
2 | Power type | LPG | ||||
3 | Rated Capacity | kg | 5000 | |||
4 | Load center | mm | 600 | |||
Characteristic&Dimension | 5 | Lift Height | mm | 3000 | ||
6 | Fork Size | L×W×T | mm | 1220×150×60 | ||
7 | Mast title Angle | F/R | Deg | 6°/12° | ||
8 | Front Overhang (Wheel center to fork face) | mm | 590 | |||
9 | Ground clearance (Bottom of mast) | mm | 200 | |||
10 | Overall Dimension | Length to face of fork (without fork) | mm | 3450 | ||
11 | Overall width | mm | 2010 | |||
12 | Mast Lowered Height | mm | 2550 | |||
13 | Mast Extended Height (with backrest) | mm | 4380 | |||
14 | Overhead Guard Height | mm | 2470 | |||
15 | Turning Radius (outside) | mm | 3250 | |||
16 | Min. intersecting aisle | mm | 2960 | |||
Performance | 17 | Speed | Travel(no load) | km/h | 30 | |
18 | Lifting(full load) | mm/s | 500 | |||
19 | Max Gradeability | % | 20 | |||
Chassis | 20 | Tire | Front | 8.25-15-14 PR | ||
21 | Rear | 8.25-15-14 PR | ||||
22 | Wheelbase | mm | 2250 | |||
23 | Service Weight | kg | 8550 | |||
Power&Transmission | 24 | Battery | Voltage/Capacity | V/Ah | (12V/80AH) × 2 | |
32 | Fuel Tank Capacity | L | 140 | |||
33 | Transmission | Type | Hydraulic | |||
34 | Stage | FWD/RVS | 2/2 | |||
35 | Operating pressure for attachment | Mpa | 19 |
Description:
Our production range for internal-combustion counterbalance forklift trucks is from 1T-33T, Economical engines for option both domestic and imported, simple and neat rows of piping design properly layout the hard and soft pipes which greatly reduced the pipeline pressure. High strength integral hood with thermal and sound insulation materials tile-cylinder built-in designs and large operation space greatly improves the operator’s maximum comfort.
Advantage:
1. Specially designed solid overhead guard provides additional security for the operator.
2. Wide-view mast gives the operator an enhanced forward visibility, which adds to the efficiency and safety of operator.
3. Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue.
Supper low and non-slip make operating convenient and safe.
![]() |
