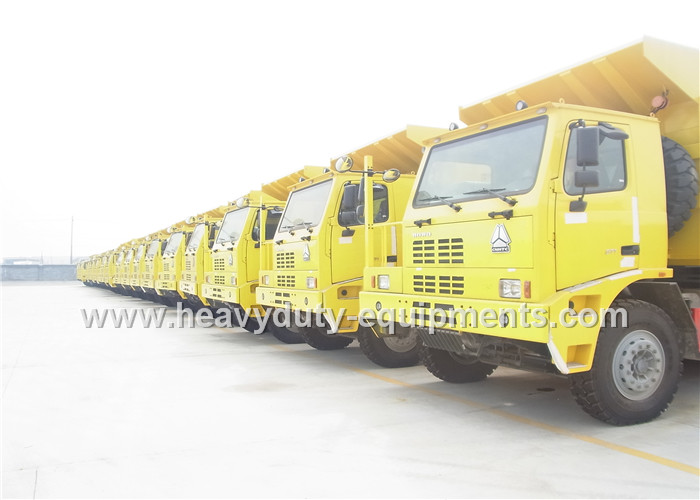

Vehicle Model

ZZ5707S3840AJ

Cab

Type

HOWO wide type

Model

Big plane one sided strength mining dump truck
special cab use coil spring suspension with
shock absorber with air conditioner
and heating system

Engine

Model

WD615.47

Maximum output power
(kw/HP)

273/370

Maximum torque
(N·m/rpm)

1500/1100-1600

Displacement (L)

9.726

Emission standard

Euro 2

Style

6-cylinder 2-stroke in line with turbo
charging and inter cooling

Clutch

430 Diaphragm-spring clutch

Transmission

HW19710 HOWO 10 shifts gearbox
Torque:1900Nm With HW70PTO

Driving Axle

AC26 Double reduction pressed axle housing with wheel reduction
and differential locks between wheels and axles

Front Axle

HF12 Mining area whole cast steel

Suspension

Front/rear leaf spring Integral balance suspension

Steering

ZF8118

Braking system

Service brake: dual circuit compressed air brake.
Parking brake: spring energy, compressed air operating on rear wheels.
Auxiliary brake: engine exhaust valve brake

Tires

14.00-25 tyre

Fuel Tanker

D type 500L

Kerb weight

23000kg

Gross weight

75000kg

Rated loading capacity

52460kg

Actual loading capacity

70000kg

Overall dimension

8500x3300x3670mm

Dump box dimension

5800x3100x1800mm

Wheelbase

3800+1500mm

Front/Rear
overhang

1500/1000mm

Approach Angle °

32/40

Max.speed

50km/h

Min.ground clearance

340mm

Min.turn radius

22m

Max. grade ability

42%

Max.inclination angle

51 °

Box lifting time

25s

Max.grade ability

42%

Patent Name

Type

Patent Number

1

One-side-door cab which can be flipped

New type

ZL200820233338.1

2

Cab for mine heavy-duty vehicle

New type

201020300571.4

3

Radiator cover for heavy mining vehicles

New type

201020101426.3

4

Right side platform assembly for heavy mining vehicles

New type

201020101325.6

5

Instrument sets of heavy duty truck cab

Appearance

201030140919.3

6

New suspension system

New type

ZL200920017240.7

7

New front leaf spring rear bracket

New type

ZL200820026501.7

8

Heavy duty truck cab rear-view mirror

Appearance

200830354794.7

9

Brake cooling device

New type

ZL200820016846.4

10

Transmission

New type

ZL200720027568.8

11

Pull-type diaphragm spring clutch assembly for heavy-duty vehicle

New type

200920019097.5

12

Cross beam assembly

Appearance

200930261302.4

13

New sliding ball joint assembly

New type

200820226455.5

14

Dump truck exhaust

New type

200920239701.5

15

Dump truck frame assembly

New type

200920281955.3
