    6x4 mining dump truck with HW7D cab and reinforce frame ISO / CCC Approved

    Ask Lasest Price
    Brand Name : SINOTRUK HOWO
    Model Number : ZZ5707S3640AJ
    Certification : ISO/CCC
    Price : $ 75000-$ 80000
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 1,000 units per month
    Delivery Time : 25 working days after received payment
    • Product Details
    • Company Profile

    6x4 mining dump truck with HW7D cab and reinforce frame ISO / CCC Approved

    6x4 mining dump truck with HW7D cab and reinforce frame ISO / CCC Approved


    Specifications:


    Sinotruk Howo Mining King Tipper Truck

    Chassis Model

    ZZ5707S3640AJ (Left Hand Driving Type)

    Production Year

    new truck.

    Cabin

    HW7D cab, without sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.

    Engine

    Make: SINOTRUK

    Diesel 4-stroke direct injection diesel engine

    Engine model: WD615.47, Euro 2, 371 HP

    6-cylinder in-line with water cooling, turbo-charging and intercooling

    Displacement: 9.726 L

    Transmission

    HW19710, 10F & 2R, with PTO

    Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

    Steering

    ZF power steering, modol ZF8098, hydraulic steering with power assitance

    Front Axle

    HF12, 1x12000 KGS

    Steering with doubleT-cross section beam

    Rear Axle

    AC26, 2x26000 KGS

    Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

    Ratio:4.42

    Propeller Shaft

    Double universal joint propeller shaft with gear-shaped coupling flange

    Chassis

    Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members, strengthened type.

    Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

    Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

    Brake

    Service brake: dual circuit compressed air brake

    Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

    Auxiliary brake: engine exhaust brake

    Electrics

    Operating voltage: 24 V, negative grounded

    Starter: 24 V, 5.4 Kw

    Alternator: 3-phase, 28 V, 1500 W

    Batteries: 2 x 12 V, 165 Ah

    Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

    Tyres

    14.00-25, 36PR

    Fuel Tank

    400L

    Cargo Body

    5600*2800*1600 mm, 25.09 CBM, Floor 16 mm Side 12 mm, front lifting

    Overall Dimension

    9000*3300*4200 mm


    Description:

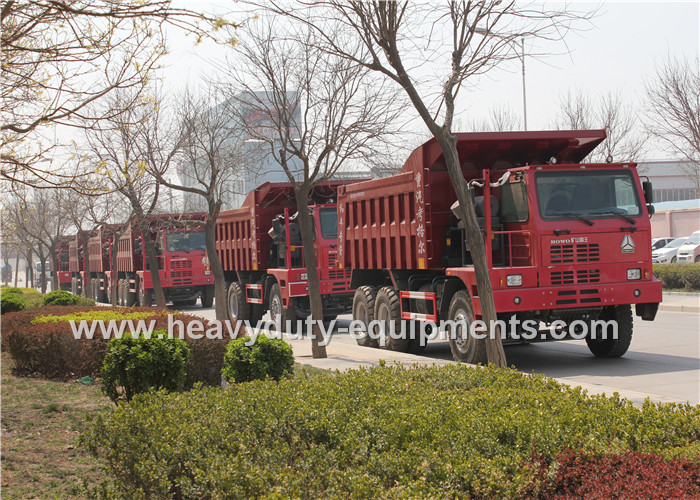

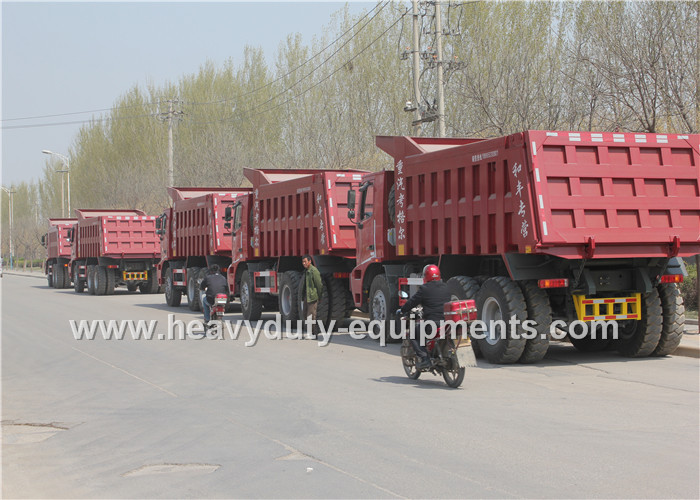

    The HOWO 70 mining dump truck, Mine Overlord, is developed by Sinotruk according to the features of the working conditions in the mines. It is suitable for the short-distance transport business in various wharves, steel mills, open pits, hydropower sites, and other places with harsh environment.

    The Mine Overlord adopts a cab with high strength framework covered with protective materials. The cab is set with one side door. A high-power diesel engine is used. The heating device adopted makes it easier for the vehicle to start and provides heat to the cab in cold days. The cost-effective chassis brings customers with good economic efficiency and social effectiveness.


    Applications:

    It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.


    Competitive Advantage


    1. we can do the designing according to the customers'requirement
    2. we can offer you the best quality & reasionalble price
    3. we can offer your a perfect after-sale service
    4. we are having strong professinal design team
    5. Fast delivery. small order is welcomed.
