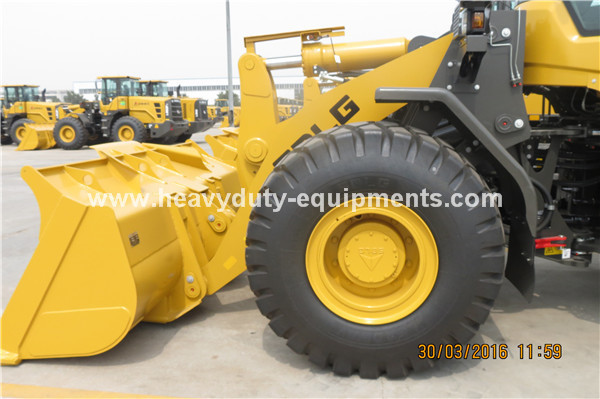

    SDLG 5T 3m3 Wheel Loader with Weichai 162kw , SDLG Heavy Axle, ZF Transmission for option

    Ask Lasest Price
    Brand Name : SINOMTP
    Model Number : L956F
    Certification : ISO/CCC
    Price : Negotiation
    Supply Ability : 100 units/month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    SDLG 5T 3m3 Wheel Loader with Weichai 162kw , SDLG Heavy Axle, ZF Transmission for option

    SDLG 5T 3m3 Wheel Loader with Weichai 162kw , SDLG Heavy Axle, ZF Transmission for option


    Specification:


    ItemLG956LEngineWeichai Deutz
    TransmissionSDLG transmissionBucket Capacity ( m3)3
    AxleSDLG axlesRated Load (kg)5000
    Hydraulic SystemPilot ControlMax Dumping Height (mm)3180
    Working ArmStandardCycle Time (s)≤11.3
    Control Valve3 ValveMin Steering Radius (mm)6036
    Brake SystemDual Brake PetalMax Breakout Force (KN)≥180
    CabStandardDimension (L*W*H) (mm)8040*3060*3382
    Cooling/Heating SystemStandardOperating Weight (kg)17250
    Quick CouplerYesAttachmentOptional

    Description:


    L956F is a mining and excavating typed loader for loading and unloading hard materials, with long axle base, large breakout force. It is customized for mine and heavy-load operating conditions and is widely used in building site, aggregate towms construction and etc


    Advantages:


    1. The self-developed digitized stepping dashboard of SDLG is adopted, which ensures high human-machine interaction, the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.


    2. It adopts finite element optimized front and rear frame that have passed 200,000 times of fatigue enhancement tests and has high strength and long service life. Long axle base and enlarged counter weight design ensures a stable traveling operation.


    3. Standard rock bucket using high strength anti friction cutting board and the bottom and rear wall of the bucket are both designed as per the shoveling and excavating condition, with welded and embedded cutting teeth. Small anti-friction board is equipped between cutting teeth as standard, which is more suitable for mining condition.


    4. It is equipped with large-cylinder-diameter rotating bucket oil cylinder and lifting cylinder, with breakout force of up to 18.3 ton and ground lifting force of up to 16.3 ton.

    SDLG 5T 3m3 Wheel Loader with Weichai 162kw , SDLG Heavy Axle, ZF Transmission for optionSDLG 5T 3m3 Wheel Loader with Weichai 162kw , SDLG Heavy Axle, ZF Transmission for optionSDLG 5T 3m3 Wheel Loader with Weichai 162kw , SDLG Heavy Axle, ZF Transmission for option
