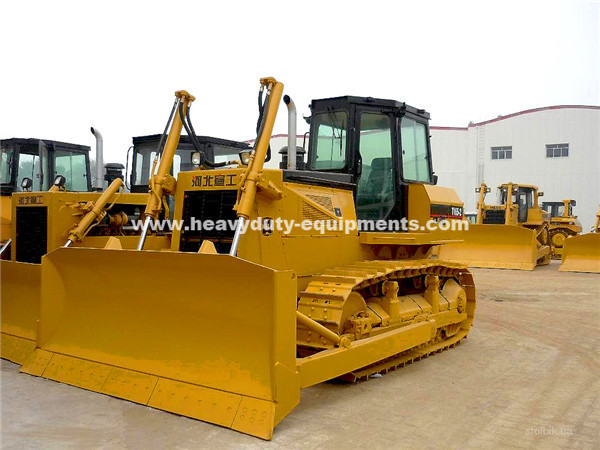

    HBXG TY165-2 Crawler Bullzoder Equipped With Weichai Engine And Characterized By High Efficient, Open View

    Ask Lasest Price
    Brand Name : HBXG
    Model Number : TY165-2
    Certification : ISO/FMRC/CCC
    Price : NEGOTIATION
    Payment Terms : L/C, T/T
    Supply Ability : 30 units per month
    Delivery Time : in 30 working days
    • Product Details
    • Company Profile

    HBXG TY165-2 Crawler Bullzoder Equipped With Weichai Engine And Characterized By High Efficient, Open View

    HBXG TY165-2 Crawler Bullzoder Equipped With Weichai Engine And Characterized By High Efficient, Open View


    SPECIFICATION:


    DozerTilt/U-bladeUndercarriage system
    Operating Weight(kg) with riper17550/18030Type
    Ground pressure(kpa)68.3/70.1Swing type sprayed beam
    Track gauge (mm)1880/1880Suspended structure of equalizer bar
    Gradient30/25
    Min.Ground clearance (mm)352.5

    N of track rollers

    N of carrier rollers

    6 for each side

    2 for each side

    Dozing capacity m34.6/5.2Pitch (mm)203
    Blade width (mm)3442/3467Width of shoe (mm)500
    Max digging depth (mm)420/377GearsForward
    Overall dimension5447*3442*3160Backward
    Engine TypeWeichaiImplement hydraulic system
    Rated reverlation1850Max.system pressure12 Mpa
    Engine power (kw)121Pump typeTwo group Gears
    Rated fuel consumption(g/kw.h)<215System output (L/min)185
    Driving system
    Torque converter3-element 1-stage 1-phase
    TransmissionPlanetary, power shift transmission with three speeds forwards and three speeds reverse, speed and direction can be quickly shifted
    Steering clutchMultiple-disc oil power metallurgy disc compressed by spring, hydraulic operated
    Steering brakeBrake is oil two direction floating band brake operated by mechanical foot pedal
    Final driveThe final drive are double reduction with spur gear and segment sprocket, which a sealed by duo-cone seal

    Description:


    TY165-2 bulldozer is 15 horsepower track-type dozer with hydraulic direct drive, semi-rigid suspended and hydraulic assistinng operating, pilot hydraulic blade control. TY165-2 bulldozer is characterized by high efficient, open view, optimized structure, easy operation and service with low cost and reliable entire quality. It can be equipped with three shanks ripper, U-blade (5.2 cubic meter capacity) and other optional components.

    TY165-2 bulldozer is applicable for earth handing in road construction, desert and oil field working, farmland and port construction, irrigation and electric power engineering, mining and other engineer conditions.

    It is the upgrade product of TY165 bulldozer.
