Brand Name : | SINOMTP |
Model Number : | XG6101 |
Certification : | ISO/CCC |
Price : | Negotiation |
Supply Ability : | 100 units/month |
Delivery Time : | 30 work days |
Specification:
Item | XG6101 | |
Operating Weight | 10600kg | |
Static Linear Load of Drum | 282N/cm | |
Vibration Frequency | 30Hz | |
Theoretical Amplitude | 1.7/0.85mm | |
Centrifugal Force | 225/112kN | |
Drum Weight | 6000kg | |
Min. Turning Radius | 6300mm | |
Max. Grade ability | 50% | |
Drum (D×W) | φ1540×2130mm | |
Min. Ground Clearance | 350mm | |
Overall Dimensions (L×W×H) | 5688×2270×3200mm | |
Engine | Model | Cummins 4BTA3.9 |
Rated Power | 97kW | |
Rated Speed | 2500r/min |
Description:

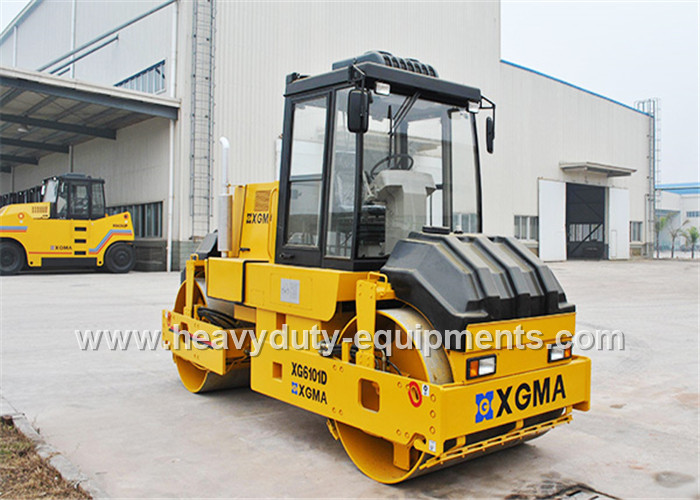

Road rollers of this series are hydrostatic transmission double drive vibratory road rollers. They are ideally suited for compaction operations of road, railway, airport, dam and various earthwork foundations.
Features of XGMA Hydraulic Vibratory Road Roller:
1. The spacious and quiet cab provides excellent all-around
visibility and features thermal insulation, vibration reduction.
2. Safe and reliable three-stage braking system.
3. Pad-foot drum and air-conditioner are available to suit
customer's specific needs.
4. Adopt Dongfeng Cummins turbocharged diesel engine, with the features of being reliable, environment friendly and energy-saving.
![]() |
